Red Sea ReefATO+ System

Introduction

The Red Sea ReefATO+ is a 3-in-1 intelligent auto top-off (ATO) system designed for saltwater aquariums. It combines a precise water level sensor, an accurate temperature monitor, and a sensitive leak detector into a single Wi-Fi-enabled controller. This all-in-one system helps maintain stable salinity, optimal temperature, and protects against leaks, all accessible and controllable through the ReefBeat app.

Key Features

• Solid-State EC Water Level Sensor: Five titanium probes provide highly accurate water level detection, ensuring precise top-off operations.

• Integrated Temperature Monitoring: Equipped with a pre-calibrated sensor accurate to ±0.1°C, allowing you to monitor and receive alerts for temperature fluctuations.

• Reef-Spec Leak Detector: Titanium probes detect leaks anywhere from RO/DI to seawater, triggering automatic shutdown and notifications to prevent damage.

• Quiet, Variable Flow ATO Pump: Capable of up to 300 L/h flow with a maximum head of 2.5 meters, featuring automatic speed adjustments to prevent splashing.

• ReefBeat App Integration: Enables real-time monitoring, historical data tracking, and customizable alerts for water level, temperature, and leak events.

Specifications

• Pump Flow Rate: Up to 300 L/h

• Maximum Head Height: 2.5 meters

• Power Consumption: 6–10 W

• Pump Diameter: 4.5 cm

• Sensor Accuracy: ±0.1°C for temperature

• Tubing Included: 3 meters of 5mm ID silicone tubing

Usage Guidelines

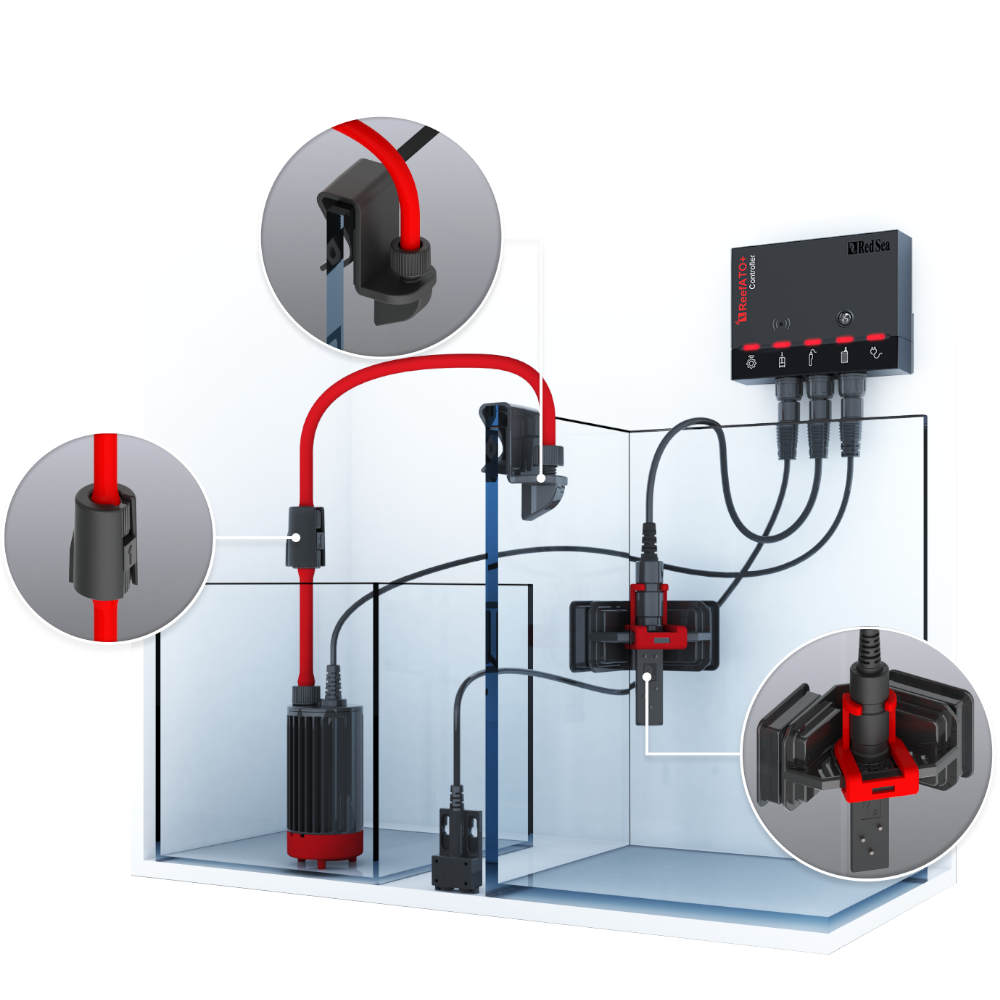

• Installation: Attach the sensor to aquarium glass up to 12mm thick using the magnetic bracket. Place the pump in the reservoir ensuring it is fully submerged and connected properly. Position the leak detector in areas prone to leaks.

• Maintenance: Regularly clean the sensor probes and pump impeller to maintain optimal performance. Check for debris or buildup that could impair functionality.

• Compatibility: Specifically designed for saltwater aquariums. Not recommended for freshwater setups due to sensor conductivity requirements.

Recommendations

• For Reef Aquariums: Ideal for maintaining stable salinity and temperature in marine setups.

• For Smart Aquarium Management: Excellent choice for aquarists who want integrated monitoring and control via a mobile app.

• For Safety-Conscious Users: Provides peace of mind with leak detection and automatic shutdown features.
